Artec AGE-AIR World 1st Vocal Blender FM Transmitter acoustic EQ pickup preamp

AGE-AIR

World
First Vocal Blender FM Transmitter EQ

These days more
and more Acoustic guitars tend to have the pickups and equalizers
on the guitar body, but most of the guitar customers, who are beginners
and amateur players, are unlikely to have an acoustic guitar amplifier
so it seems difficult for them to have a chance of using pickups
and equalizer because the acoustic guitar amplifiers are less various
and more expensive than electric guitar amplifiers.
However
general home mini stereo, portable stereo, or car-stereo have  the
much better characteristics for acoustic guitar than using electric
guitar amplifiers.

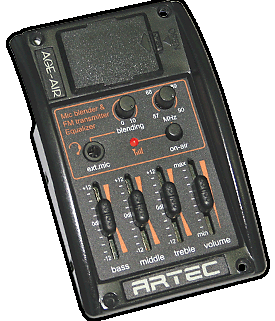

Artec AGE-AIR is designed to be able to
use the common stereos  like an acoustic guitar amplifier to
use FM band.
The selection of frequency goes from 87Mhz~within
90Mhz range on your free choices.

 printable sheet (PDF)

**
Artec AGE-AIR has the adjusted output for the purpose of usage within
the close distance like in the small sized room or cars. But it
is not recommendable to use for a professional transmitter or in
a large space like concert hall.

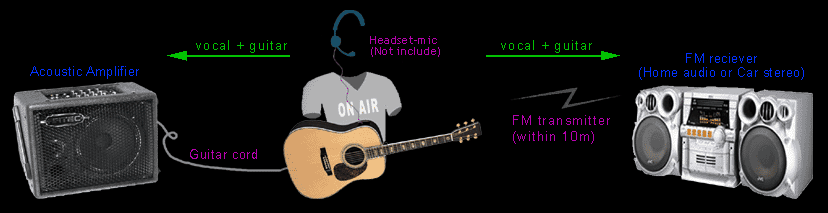

Besides
AGE-AIR has the additional function of mixing the signal
of the external microphone.

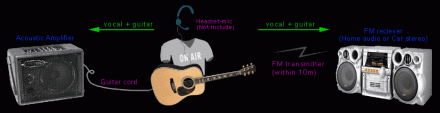

And it allows the players
to mix their own voices and the guitar performance with the headset(normal
headset for PC) and send them to the Amp and the fm-radio respectively.
When
you do not use the External Mic, automatically it mixes the signal
of the internal microphone to be able to make the output of blending
the inner-body sound.

How
to use
1. Turn on the FM radio, adjust the frequency, which
has no station within 87Mhz~90Mhz range. **(The frequency in a station
or interference can cause some undesirable noise )
2. Power on
the FM transmitter of the AGE-AIR and try to match moving the tune
knob slowly.
3. Set the very right frequency with no distortion
through the fine-tuning even on the status of  tune.
4.
With the volume up some distortion may be caused according to the
style of performance so we suggest controlling the volume according
to your type of playing.

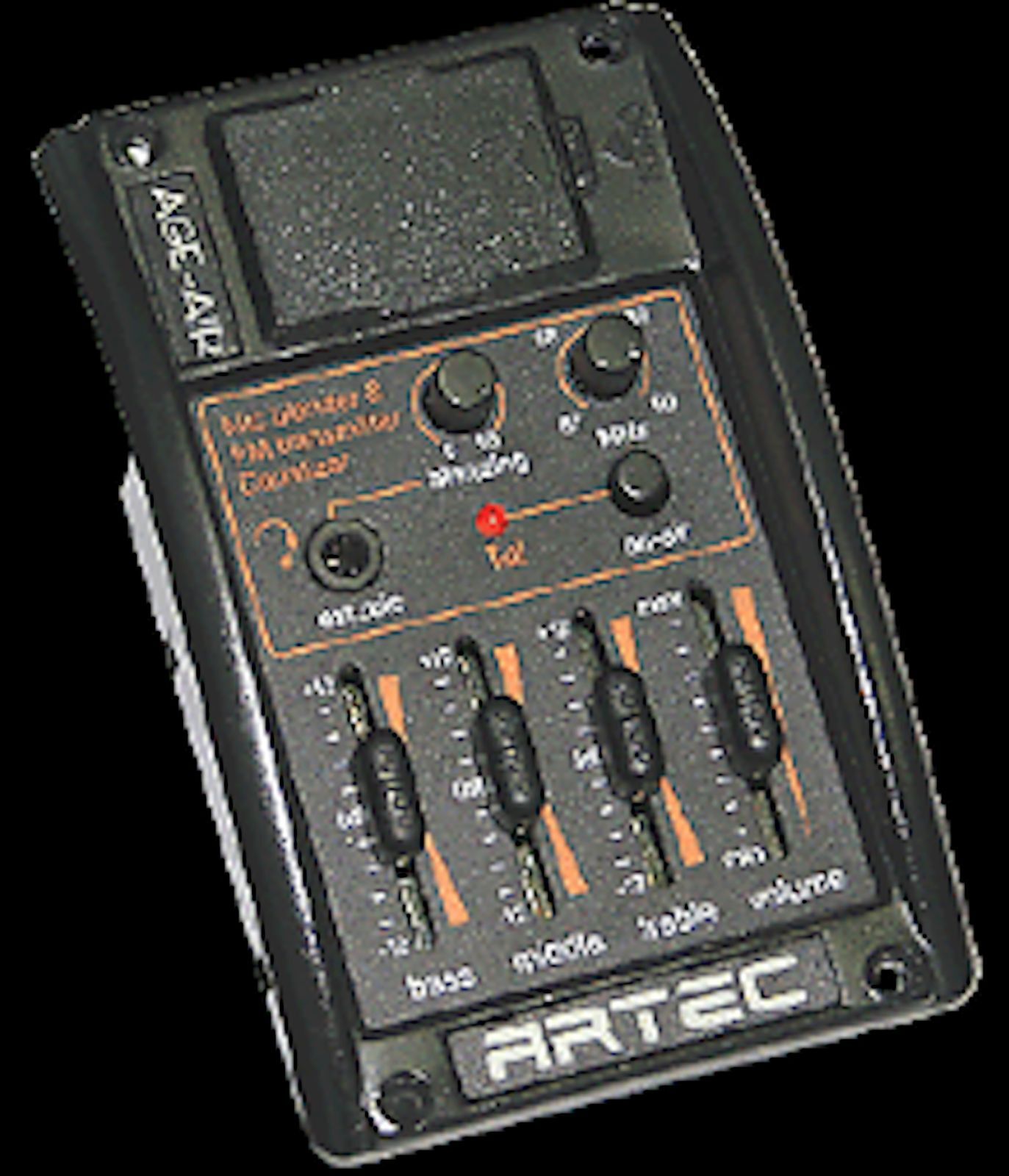

Features
Power : Alkaline DC9V (006P)  /  25mA@9V
EQ.
Controls :
   – Level : output level            –
Bass : -12dB ~ +12dB
   – Middle : -12dB ~ +12dB
     – Treble : -12dB ~ +12dB
Mic. Blending
Level Controls
External Mic. Jack (on panel)
Internal Microphone
(bottom)
SW : FM transmitter power sw.
Frequency Tune : 87MHz
~ 90MHz

About certification
This
product like ‘Wireless microphone for home use’, which does not
require the ‘user license’ as a small power transmitter, but these
is a case that some countries can request the certification regarding
the small power transmitter for even this kind of products group.
AGE-AIR
is as ‘a part of musical instrument’, the certification is for the
complete products which built on(the final-commercial goods).
On
the request of the certification from the customers, Artec provide
the sample for certification and we recommend that they  sell
their guitars with printing the given certification on the paper
tag or card, which is attached to the guitars.

AGE
Series overview

“Finally we’ve got the Preamp including
all the features that guitarists around the world have
requested”
AGE equalizer series lead guitarists can perform the perfect
Acoustic Electric Sound in any playing styles – Clean, Jazz, Latin,
Funky, Rhythm, Solo, Harmonics, Fusion, Concert and many more.
Basic feature of AGE Series including 4 Band Graphic EQ Sliders
that provide control for Bass, Middle, Treble, Presence and
Master Volume with Low Battery check LED. Applying SMD (Surface
Mounted Device) Chip Board and EMI Shield coating inside of AGE
Preamp house can eliminates noises and creates noise-free acoustic
sound. AGE Series can be installed on upper bout of your guitar
for ease to control and the advanced case design with radius sideline
can make installation easier. Using the Frequency and Contour
controls together allows you to boost or cut desired frequencies.

COMMON FEATURES
– Low  battery check LED
– Onboard 9 V battery
case
– Master Volume

Connection
plate

– 2.5 mm jack for Piezo pickup
– 3.5 mm jack for
out put

Dimensions

  W  62
X H 99.5 X D 47 (mm)

Fit for
Normal
Thickness  body

Cutting Templates
(installation)

    ** width of the
preamp : 62mm
