Name: ALCTRON HP400 HEADPHONE SPLITTER AMP 4 WAY
SKU: 33028
Availability: InStock

Description



THIS LISTING IS FOR IS FOR AN ALCTRON HP400 - 4 WAY HEADPHONE SPLITTER AMP.

  Introduction:

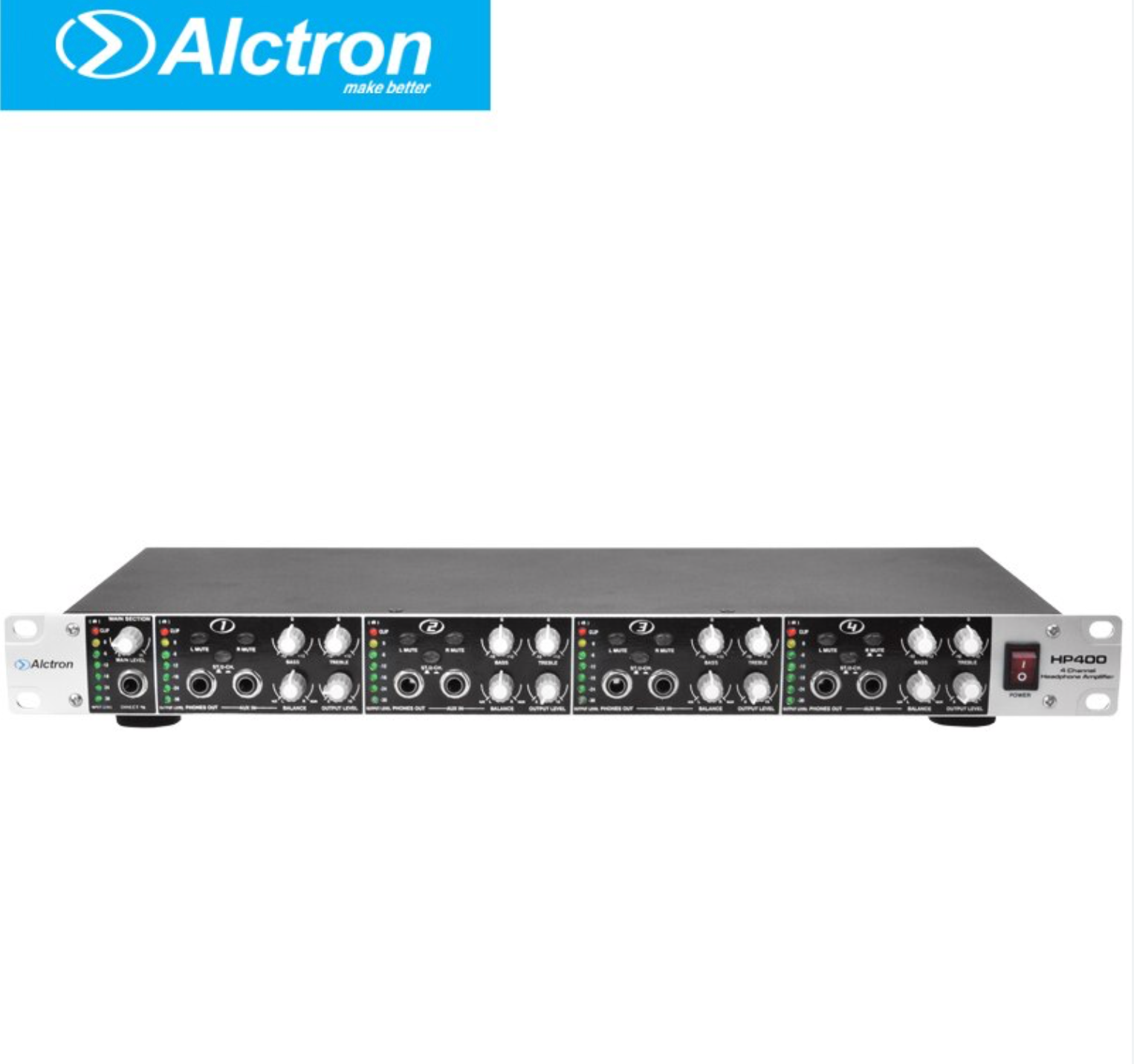

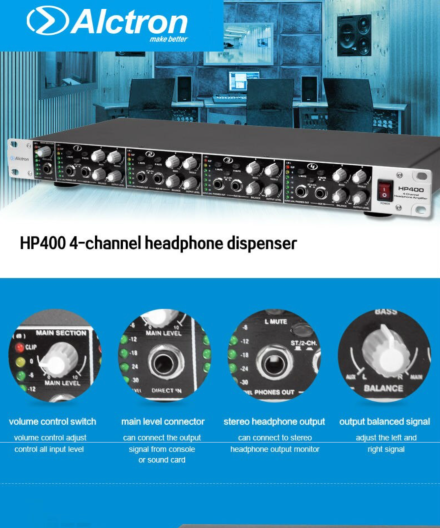

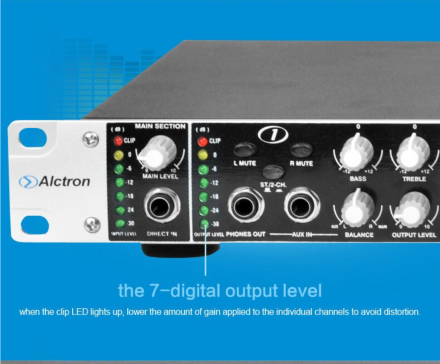

Alctron HP400 is a professional 4-channel multifunctional Headphone Amplifier. It features the level indicator of the input/output volume, in order that you can control the amplifier to work in an ideal range. And each channel has Left Mute and Right Mute, AUX Input, L/R parallel, bass equalization, treble equalization, volume
control, output level indicator and parallel headphone output on the front panel and the rear panel. It also sets 1/4" Jack stereo input and L/R Main channel (1/4" jack or XLR) input/output. So it can be many flexible combination during the real application. It is suitable for professional recording, ratio and television studios,
as well as CD/digital sound production.

Specifications:

Audio Inputs
* MAIN IN...................XLR and 1/4" TRS connectors
* Input Impedance...........40 kΩ balanced, 30 kΩ unbalanced
* Max.Input level...........16dBu balanced and unbalanced
AUX IN
* Input impedance...........5kΩ
* Max. input level..........22dBu
* DIRECT IN.................1/4" TRS connector(stereo)
Audio Output
* Main Out.................XLR and 1/4" TRS connectors, balanced

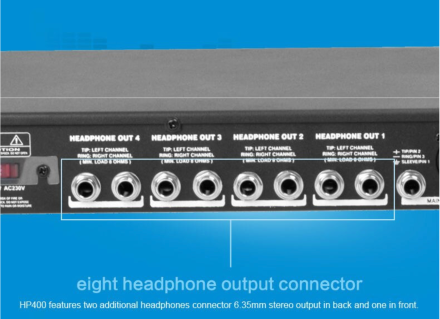

* Phones output.............1/4" TRS connector(stereo)
System Specification
* Frequency response........10Hz to 150kHz,+/-3 dB
* Noise.....................22Hz to 22kHz>90dB @ 0 dBu
* Dynamic range.............22Hz to 22kHz: 110 dB
* Distortion(THD)...........0.006% type @ +4 dBu, 1kHz, Gain 1
Function Controls
* Input level..............variable
* Balance per channel.....mix between Aux and Main
signals/balance between right and left channel
* Output Level per channel...variable
* Treble...............cut off frequency:6kHz; range: +/-12dB
* Bass.................cut off frequency:200Hz; range: +/-12dB
Function Switches
* Stereo/2-Channel.........switches between stereo mode and 2- channel mode
* Left mute................mutes the left signal of the respective channel
* Right mute...............mutes the right signal of the respective channel
Power Amplifier
* Max.output power..........+24dBm(load impedance 100Ω),+21 dBm(load impedance 8Ω)
* Min. output load impedance....8Ω
